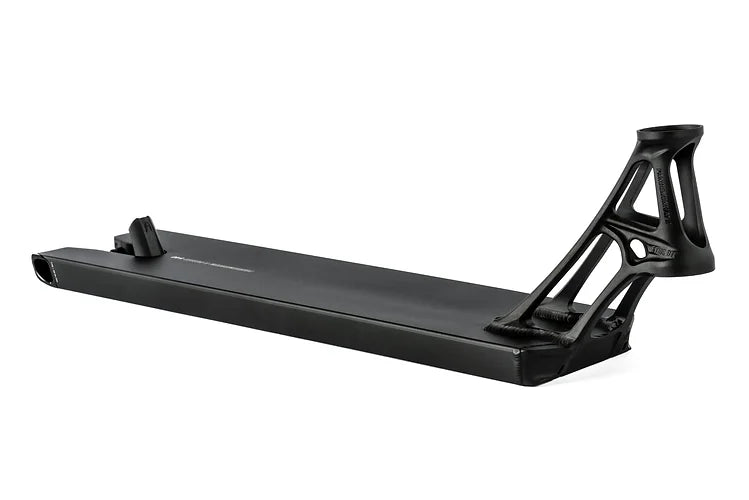

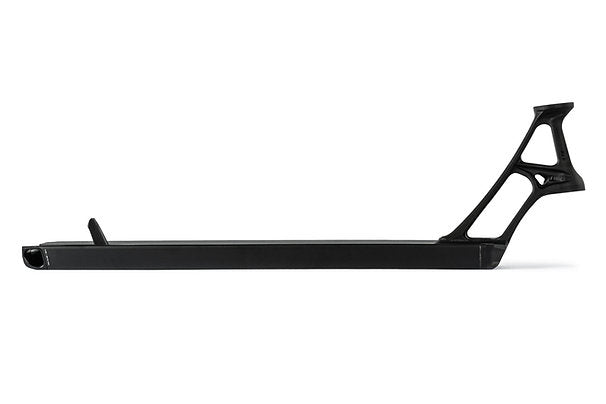

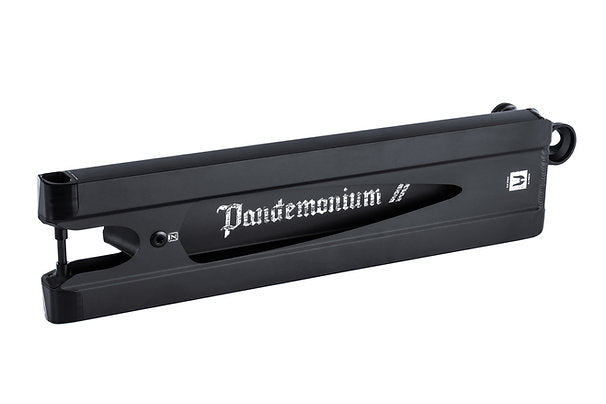

Ethic DTC Pandemonium v2 Box End Deck 540mm
Ethic DTC Pandemonium v2 Box End Deck 540mm
The Pandemonium V2 is here!!
The lightest boxed deck in the game, the Pandemonium v2!!
Created and studied from every angle to achieve the ultimate in lightness, it arrives 9 years after the iconic Pandemonium V1, but in a new format.
Just like the classic V2 version, it benefits from all the technical advances made to make it as strong and light as possible. And it benefits from all the best Ethic has to offer in terms of grinds and slide (following the experience of the Lindworm V4): the back and front deck ends have been improved to ensure better glide and, above all, flawless durability.
2 cm wider than the V1 (140 mm / 5.51 in), it is also and above all more resistant than its predecessor. Hundreds of hours of simulations were carried out to obtain the most effective geometry possible, giving it 33% more resistance to the banana effect, as well as 40% more resistance on the neck. Now made from 6082 aluminium (slightly stronger than the usual 6061).
Now compatible with 120mm diameter wheels, it comes with a brand new fender for added lightness.
This deck also sees the arrival of the new torx male axles, which are stronger and more practical (only one spanner is needed to tighten the deck).
2 lengths are available: 500 mm (19.7 in) / 540 mm (21.3 in)
2 colours: Black / Raw
The box includes a ready-to-install pre-cut griptape, an additional classic brake and a Torx 40 wrench.
There's just one thing you need to remember to ensure the longevity of your deck: tighten the rear axle to the correct torque, and don't overtighten it (25Nm Max), otherwise you're going to affect its longevity.
Evolutions (compare to Vulcain V2 Boxed) :
- World lightest Boxed deck (25% lighter : -415g)
- Stronger (+5% on the extrusion / +17% on the neck)
- Improved AED Blunt plate (Lindworm V4 evolution)
- New 8 STD fender V2 included with 7075 Torx screw
- New Torx n°40 axle
- Switch diameter allowing dual brake position (110 / 120 mm)
- Improved grip saver v2 (protecting griptape life time)
Compatible hardware :
- Pandemonium v2 axle
- Nylon Brake 8 STD V2 / Fender 8 STD V2
- 8 STD pegs (Alu or Steel)
Tech Specs:
- Weight : 540mm : 1190g (2.62 lbs)
- Width : 140 mm (5.51 in)
- Length : 540 mm (21.3 in)
- Angle : 83°
- Concave : Radius 1200
- 7075-T6 Deck ends with AED improved shape
- AED Blunt plate improved
- 8 STD compatible
- 120 mm wheels compatible
- Gripsaver v2
- Torx n°40 Axles
- Fender 8 STD V2 (with Switch diameter system)
- Griptape included
- Torx n°40 wrench included
- Spare Nylon 8 STD brake V2 included
- Colors : Black anodized / Raw brushed
